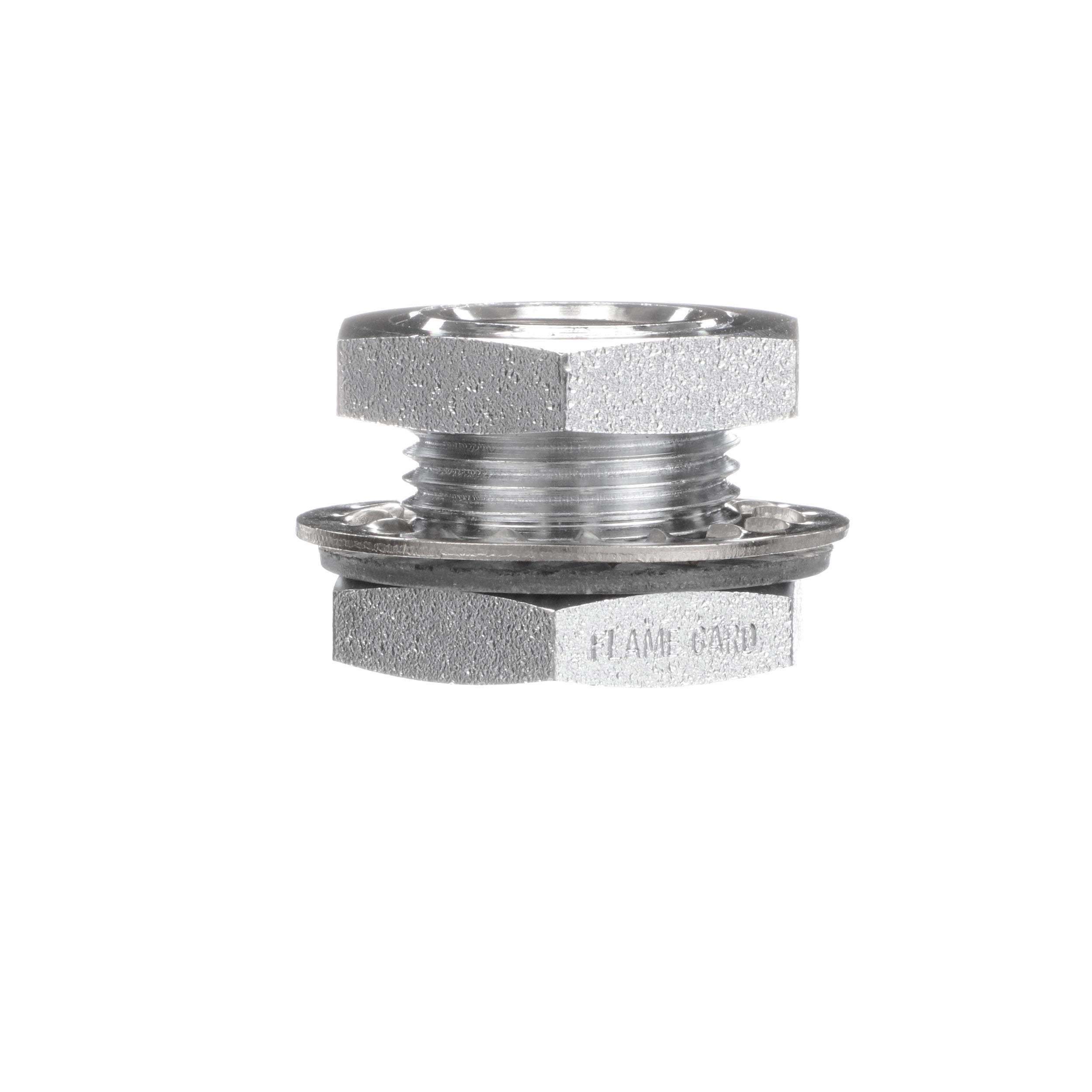

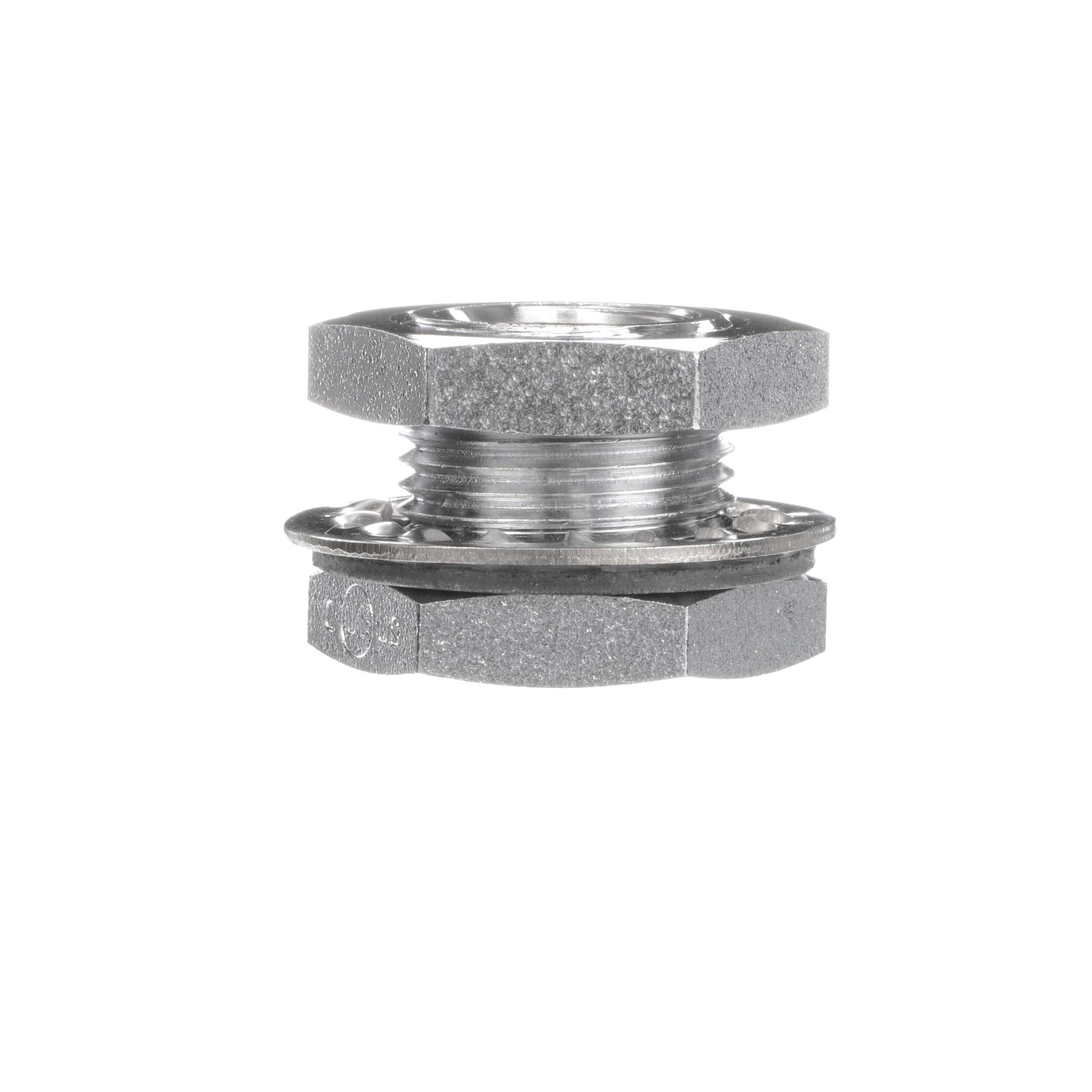

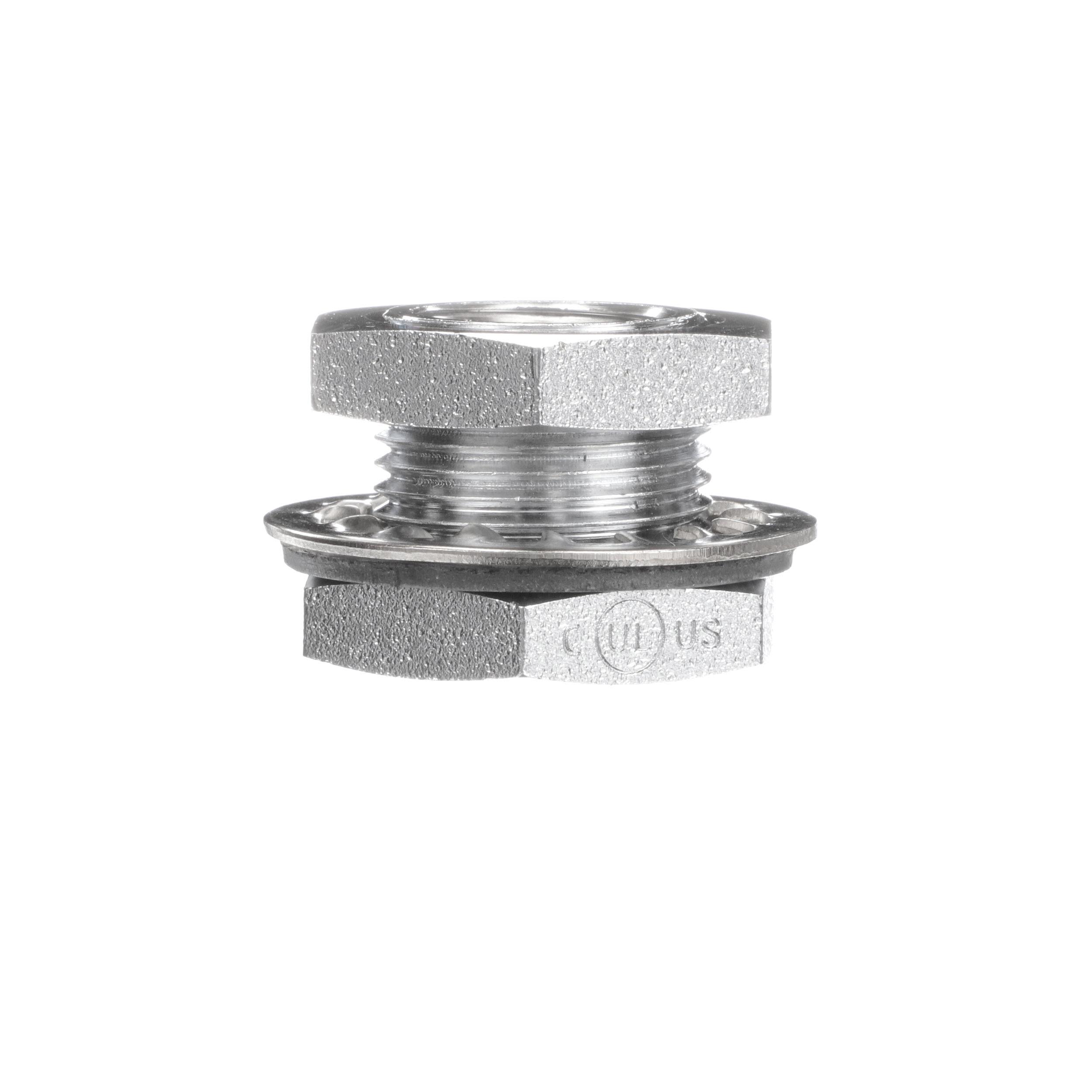

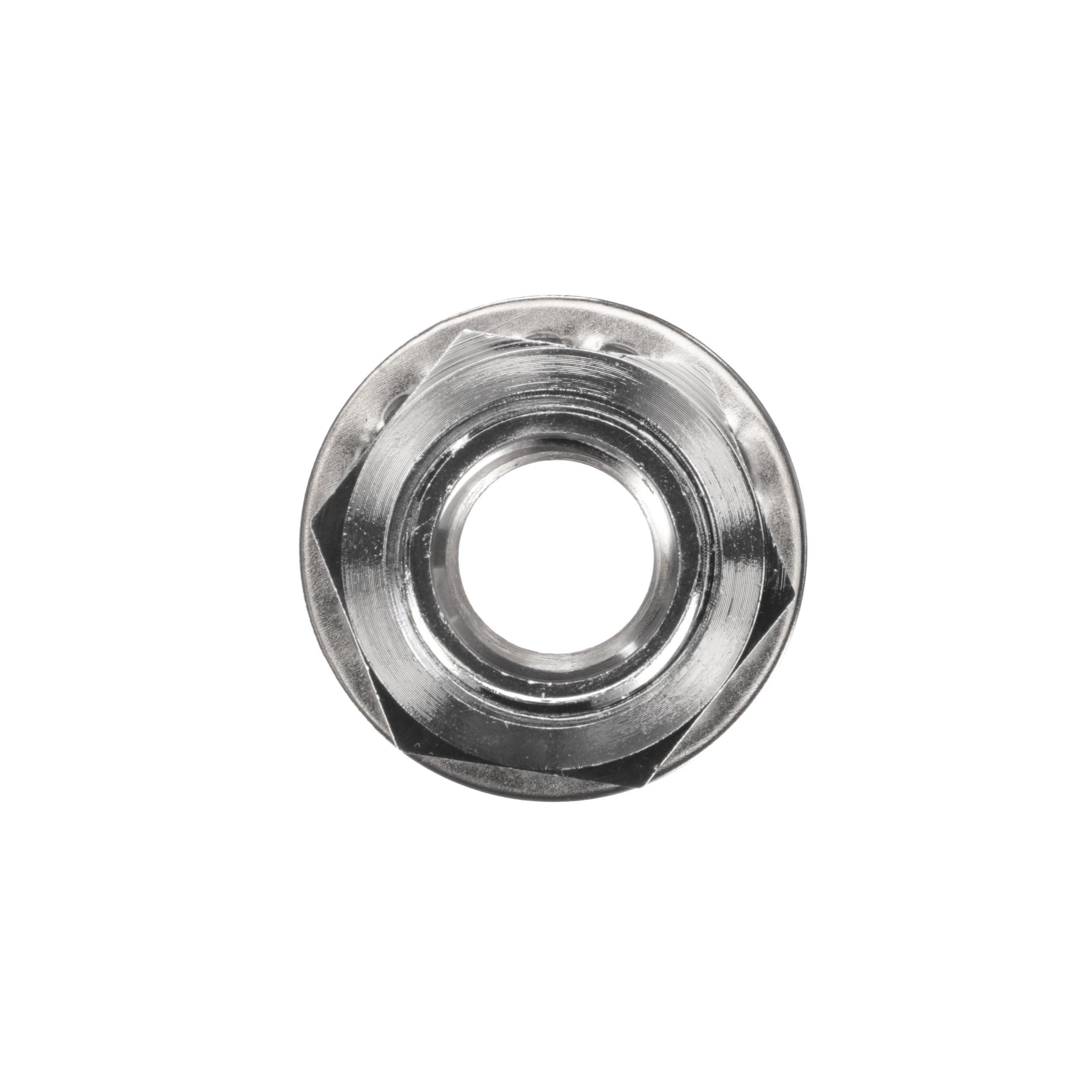

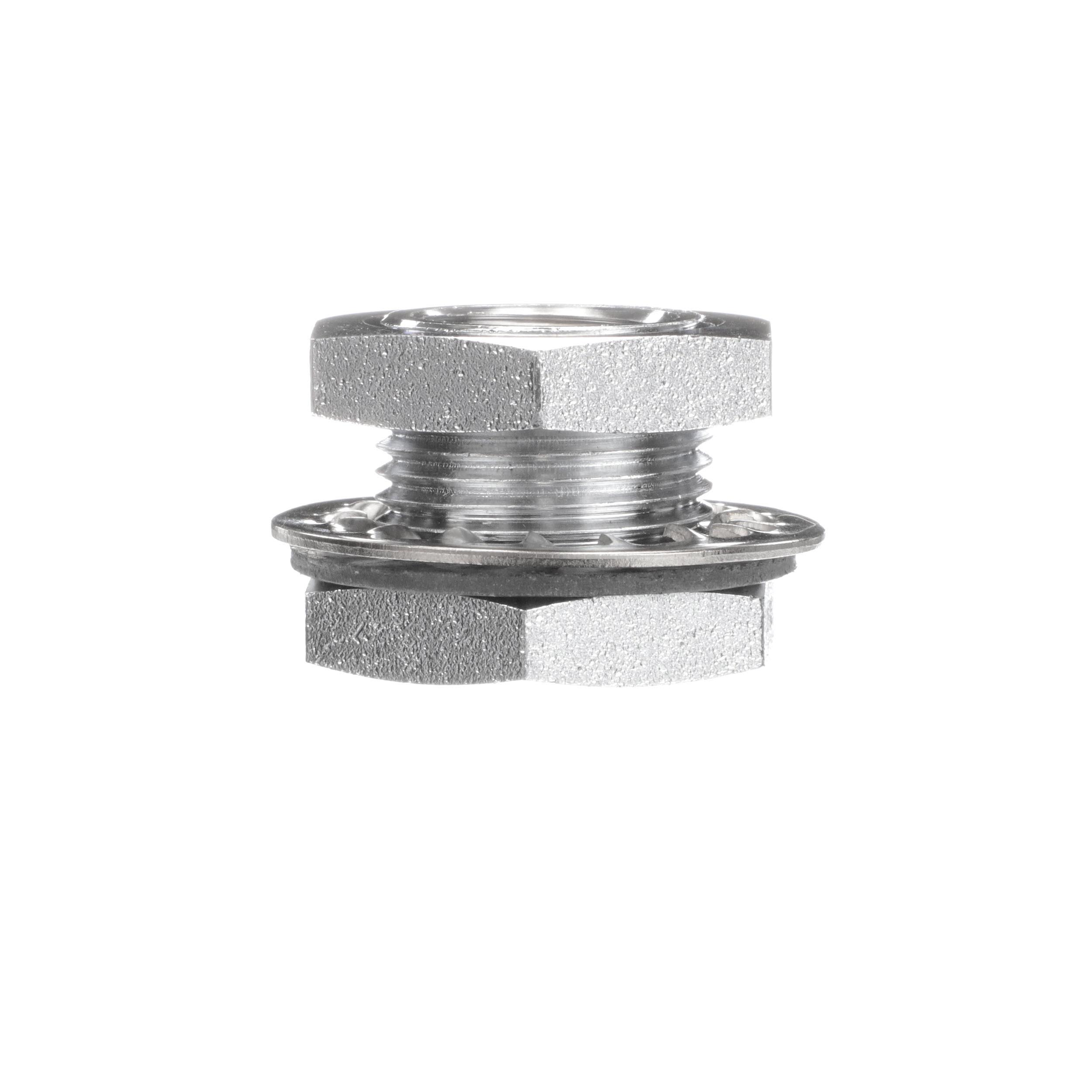

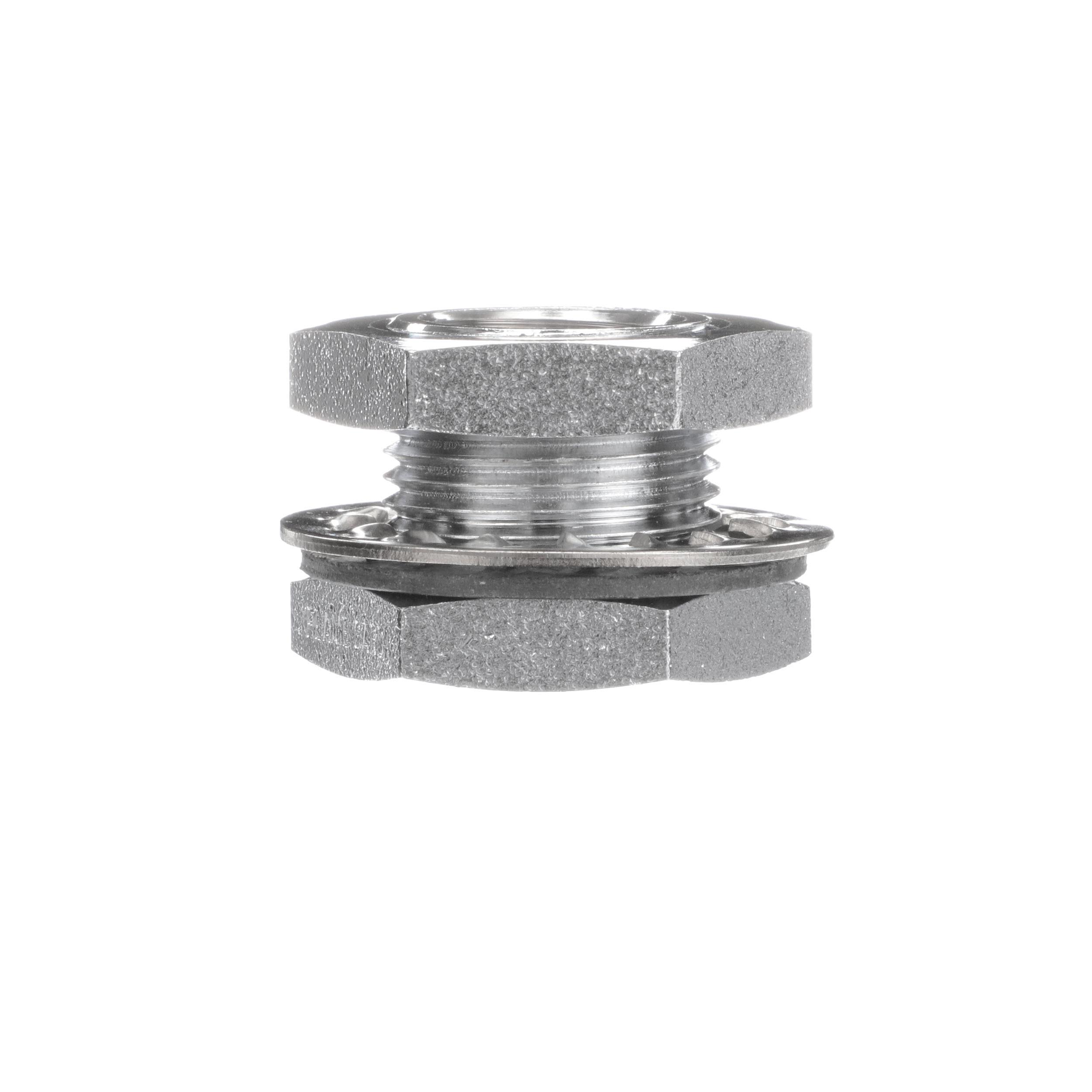

    1/2" NPT Pipe Quick-Tite Hole Seal

    • 1/2" NPT Pipe Quick-Tite Hole Seal
    • Used as through-penetration fittings in cooking hood systems
    • Provides structural support for the system piping, improving system integrity and reducing the need for additional pipe hangers
    • All Quick-Tite® Fittings are pressure tested to 5000 psi
    • Tested and Listed by Underwriters Laboratories under “Hood and Duct Accessories” (compatible with UL listed fire suppression systems)
    • In conformance with the requirements of NFPA Standard
    • No. 96
    • Manufactured of solid machined steel for superior strength and high temperature resistance
    • Supplied with a chrome plated finish to maximize corrosion resistance and attractive appearance
    • Fittings are provided with internal pipe threads to permit easy coupling of the pipes at the point of penetration
    Model No: F11-0012
    Item No.: 1003825

    $12.71
    i h
    Products specifications
    FINISH / COLOR CHROME PLATED
    PIPE SIZE 000.500 NPT PIPE
    HOLE CUT OUT 001.187-001.312
    MEASUREMENT TYPE IMPERIAL
    PRIMARY MATERIAL STEEL
    FITTING TYPE THREADED HOLE SEAL
    ATTRIBUTES COMPLETE YES
